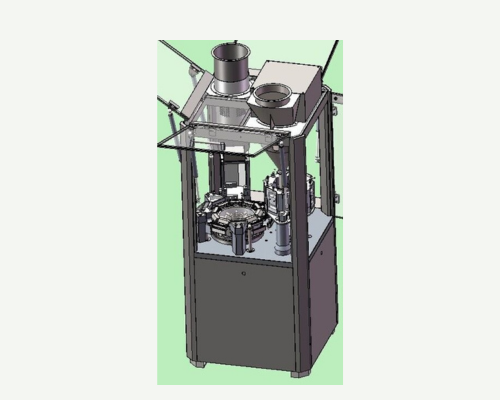

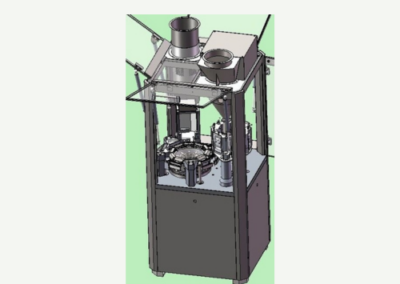

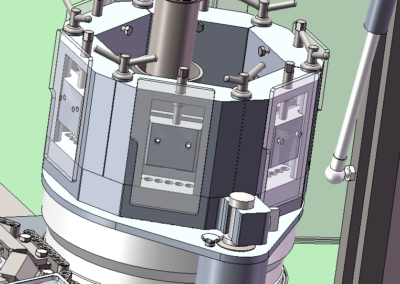

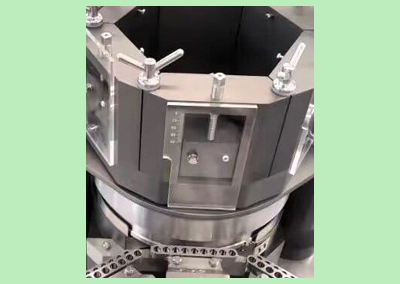

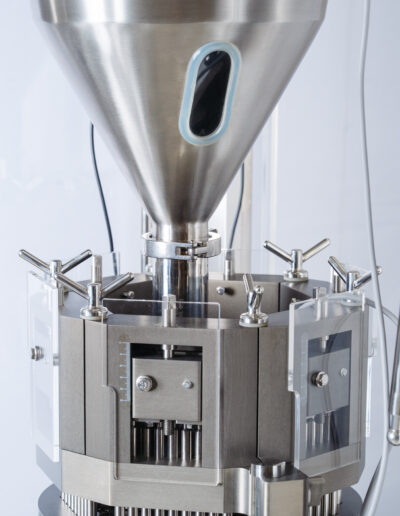

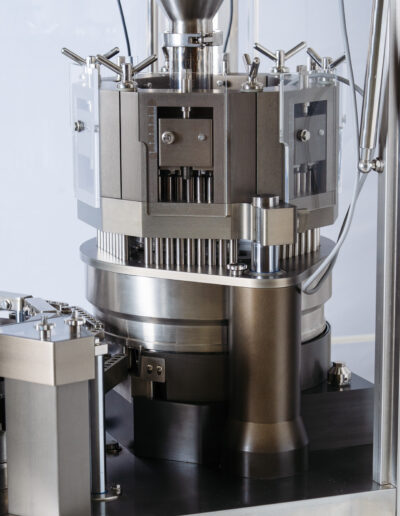

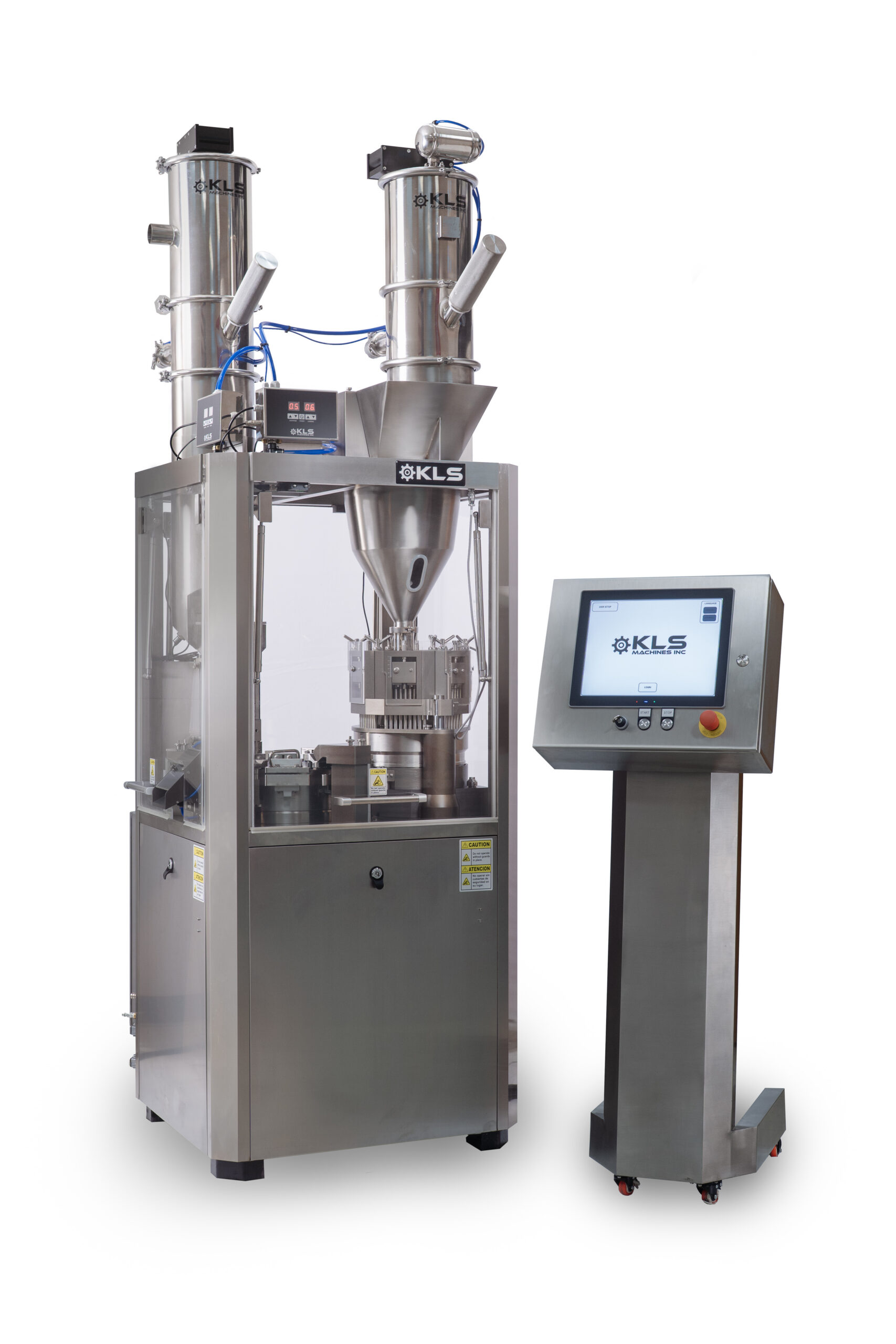

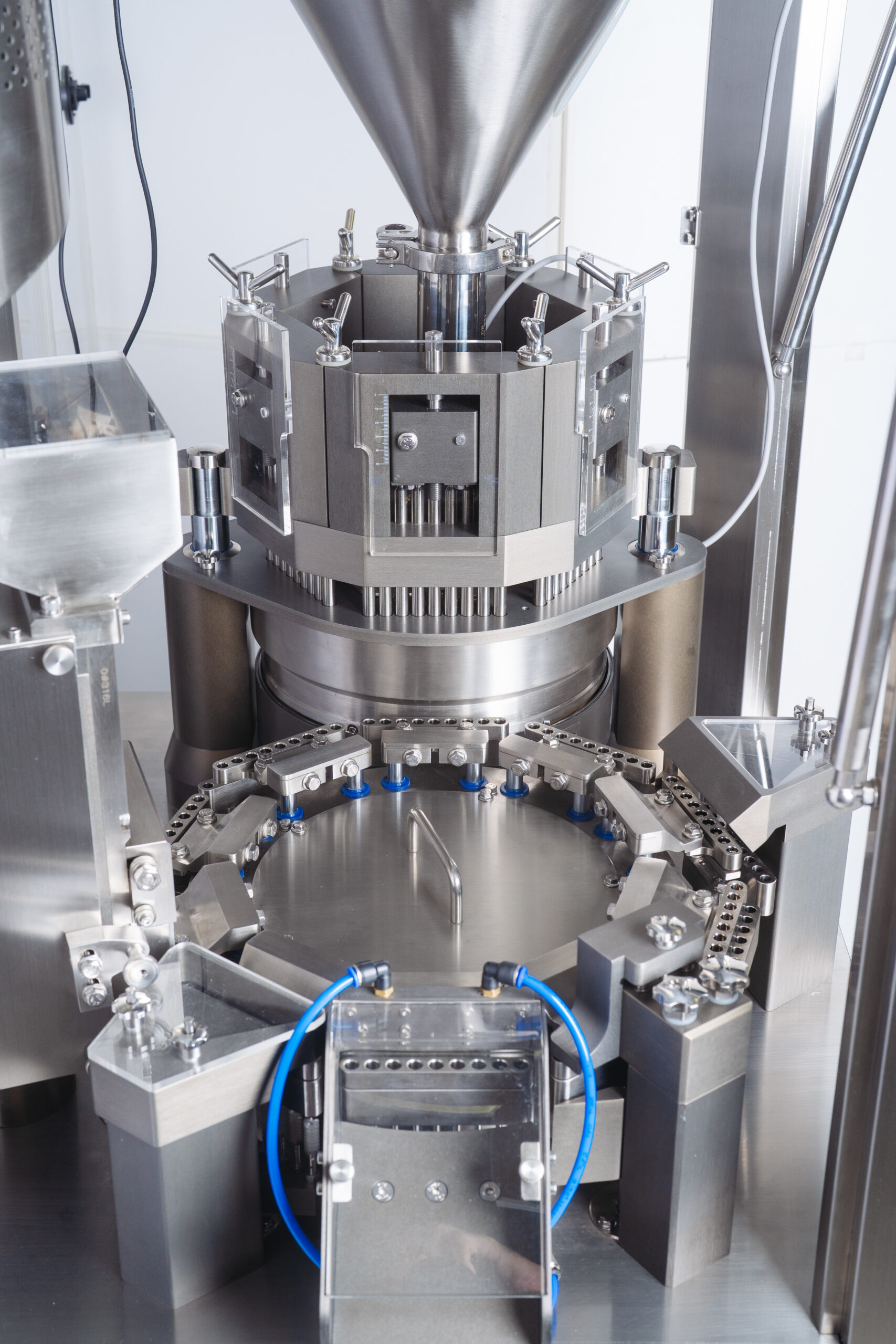

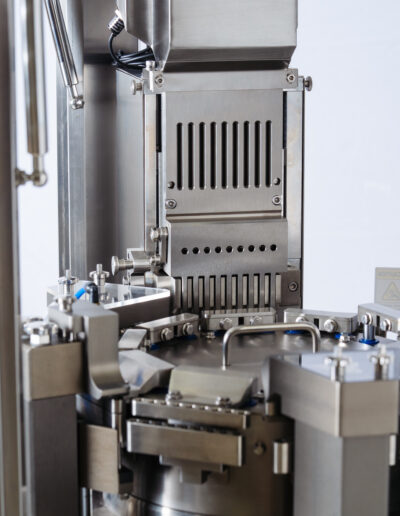

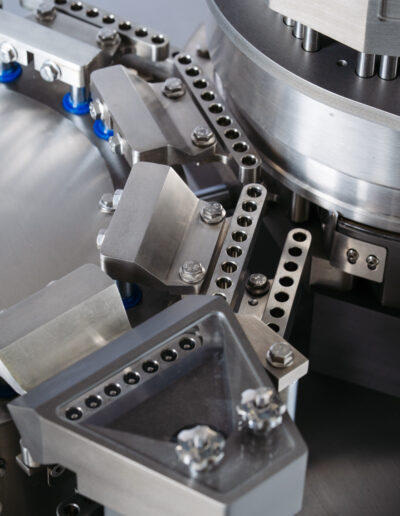

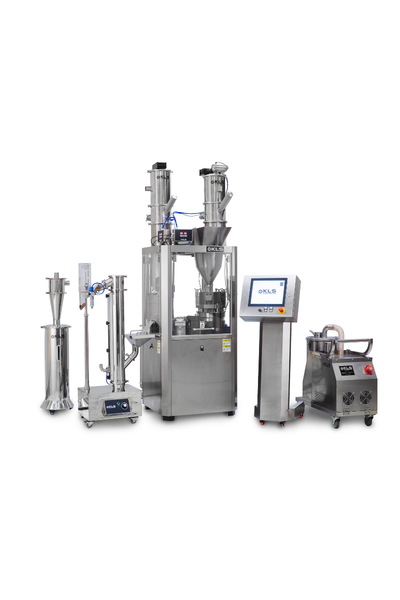

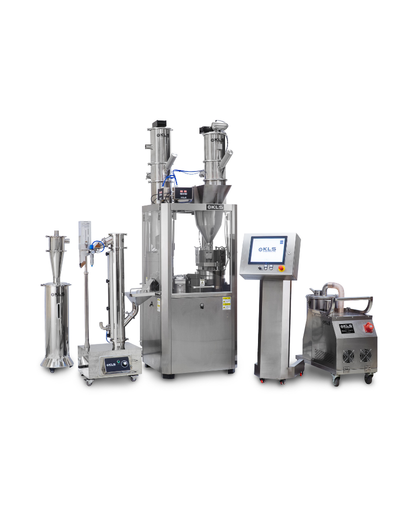

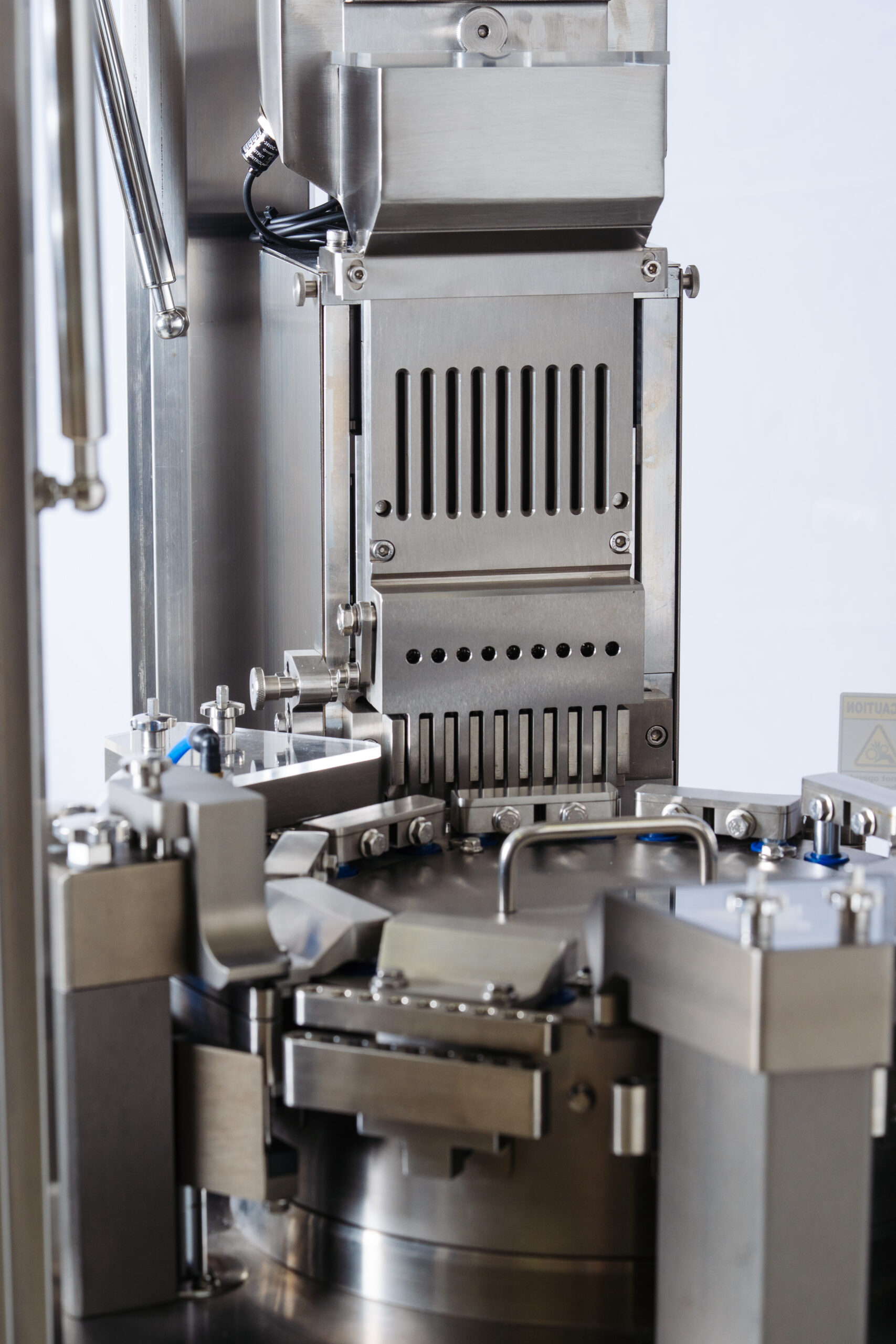

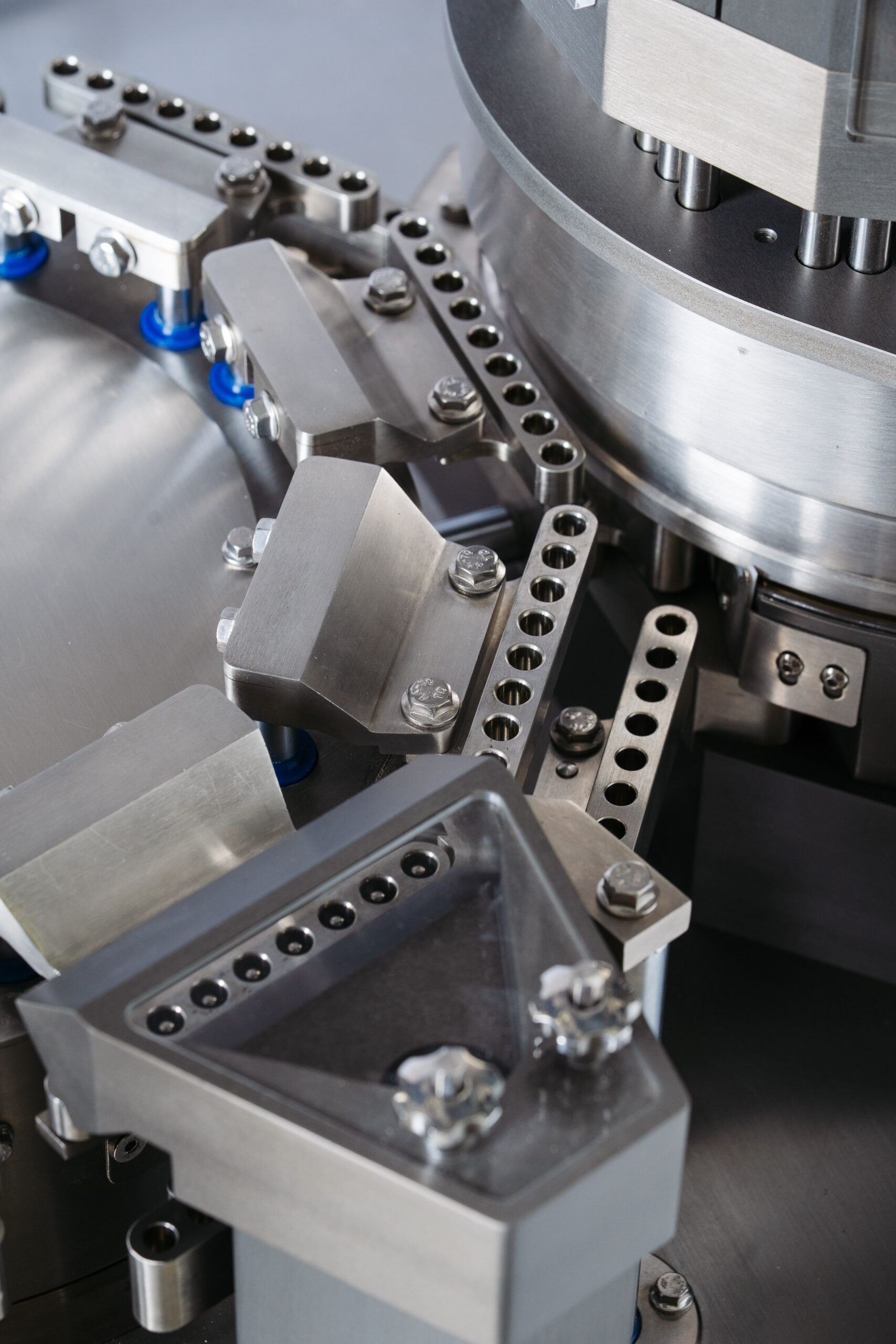

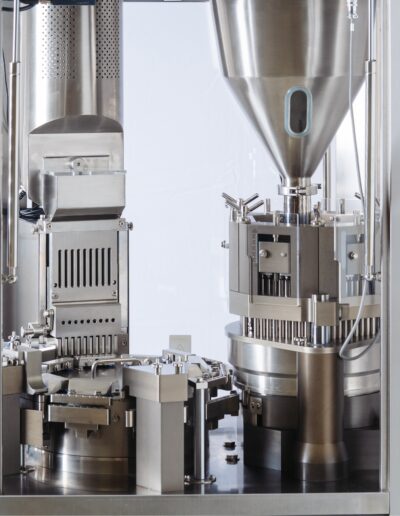

The KLS-75 Capsule Filling Machine is a tamping-style intermittent motion capsule filler with a maximum production rate of 75,000 capsules per hour. The KLS-75 is equipped with state-of-the-art safety features, time-saving mechanical designs and an easy-to-use control system.  Spare parts and tooling are engineered and machined to tight tolerances and polished to smooth finishes.  Tool-less lock-down handles and an open-space design allow for fast changeovers.  The main motor, indexing drives and vacuum pump are robust, precise and durable. Integrated auxiliary equipment is available to help with automatic powder loading, automatic empty capsule loading, dust collection and capsule polishing.

Safety Features

– UL-Compliant Control Panel

– Upper and Lower Door Safety Switches

– Safety PLC

– 2-Hand Jog-Controller

– Mobile Stainless-steel HMI Stand



Reliable Technology

– Red Lion HMI Touch Screen

– Remote-access capability

– Alarm History Storage

– Simple and intuitive

– English and Spanish



Fully Supported

– On-Site and Remote Troubleshooting

– Eaton, Red Lion, Control Techniques, etc.

Max Output: 75,000 capsules/hr
Capsules per Segment: 9
Max Speed: 140 rpm
Capsule Range: 00EL – 4
Dimensions: 4.5’ × 3.5’ × 6.5’
Weight: 2,000 lbs
Idle Noise: <75 dB(A)
Room Temperature: 65 F – 75 F
Room Humidity: 45% – 55%
Required Power: 460V 60HZ 3PH 20A
Required Air Pressure: 100 psi
